Engenius

Cloud Managed 11ac Wave 2 Wireless Indoor Access Point

ق.ر779
Quantity
Delivery options
  • 1 Years warranty
  • Ship Only

Specifications

  • Brand: Engenius
  • Networking Device Type : Access Point
  • Standards : IEEE 802.11b/g/n on 2.4 GHz IEEE 802.11a/n/ac Wave 2 on 5 GHz
  • Antenna: 1 x 2.4 GHz: 5 dBi 1 x 5 GHz: 5 dBi Integrated Omni-Directional Antenna
  • Certifications : CE FCC IC
  • Channelization : 802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz 802.11n Supports High Throughput (HT)—HT 20/40 MHz 802.11n/ac Packet Aggregation: AMPDU, ASPDU 802.11n Supports Very High Throughput (VHT) Under the 2.4 GHz Radio—VHT 40 MHz (256-QAM)
  • Dimensions & Weight : Weight: 0.80 lbs. (362 g) Diameter: 6.36” (161.5 mm) Height: 1.64” (41.5 mm)
  • Environment & Physical Temperature Range: Operating: 32ºF~104ºF (0 ºC~40 ºC) Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)
  • Frequency Radio : 2.4 GHz: 2400 MHz ~ 2472 MHz 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz – 5850 MHz
  • Humidity (non-condensing): Operating: 90% or less Storage: 90% or less
  • LED Indicators: 1 x Power 1 x LAN 1 x 2.4 GHz 1 x 5 GHz 1 x Mesh (ECW120)
  • Maximum Power Consumption : 12W
  • Multiple BSSID : 8 SSIDs on both 2.4GHz and 5GHz radios.
  • Operating Frequency : Dual-Radio Concurrent 2.4 GHz & 5 GHz
  • Operation Modes : Manage Mode: AP, AP Mesh
  • Package Contents : 1 – ECW120 Cloud Managed Indoor Access Point 1 – T-Rail Mounting Kit 1 – Ceiling and Wall Mount Screw Kit 1 – Mounting Bracket 1 – Quick Installation Guide
  • Physical Interface : 1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port 1 x DC Jac 1 x Reset Button
  • Power Source : Power-over-Ethernet: 802.3af Input IEEE 802.11e Compliant Source 12VDC /2A
  • QoS (Quality of Service) : Compliant With IEEE 802.11e Standard WMM
  • Spanning Tree: Supports 802.1d Spanning Tree Protocol
  • Supported Data Rates (Mbps): 2.4 GHz: Max 400 5 GHz: Max 867 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when enabling 256-QAM uner HT40) 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
  • Supported Modulation: 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
  • Supported Radio Technologies : 802.11b: Direct-Sequence Spread Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11n/ac: 2×2 MIMO with 2 Streams
  • Transmit Power: Up to 23 dBm on 2.4 GHz Up to 23 dBm on 5 GHz
  • VLAN Tagging : Supports 802.1q SSID-to-VLAN Tagging Cross-Band VLAN Pass-Through Management VLAN
  • Wireless & Radio Specifications Operating Frequency : Dual-Radio Concurrent 2.4 GHz & 5 GHz
  • Wireless Security: OWE WPA2 Personal WPA3 Personal (SAE) – WPA3 Only WPA3/WPA2 Personal Mixed WPA2 Enterprise WPA3 Enterprise Suite B Hide SSID in Beacons MAC Address Filtering, Up to 32 MACs per SSID Wireless STA (Client) Connected List SSH Tunnel Client Isolation

Product Description

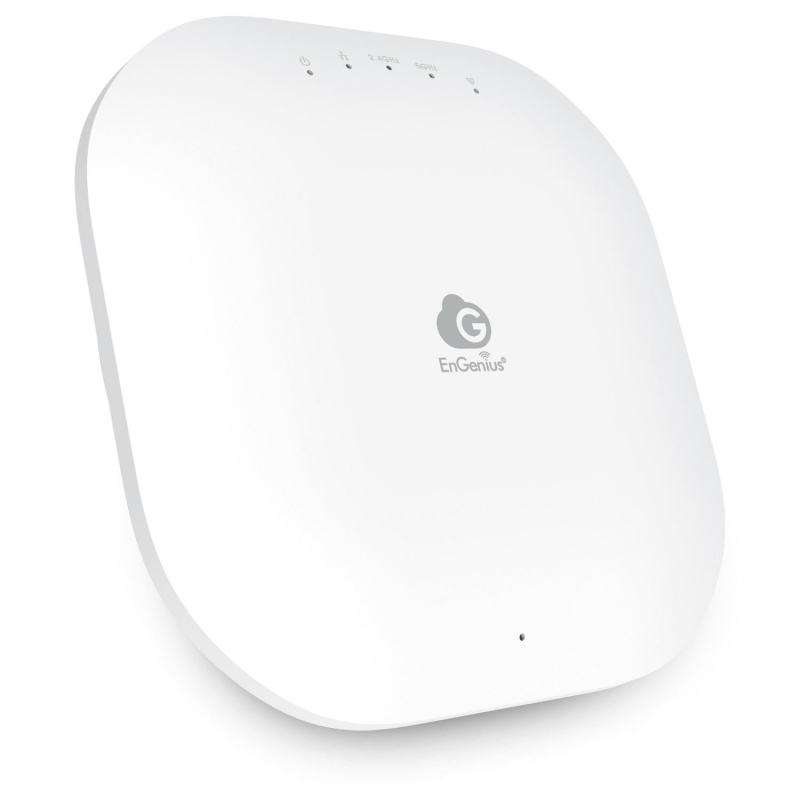

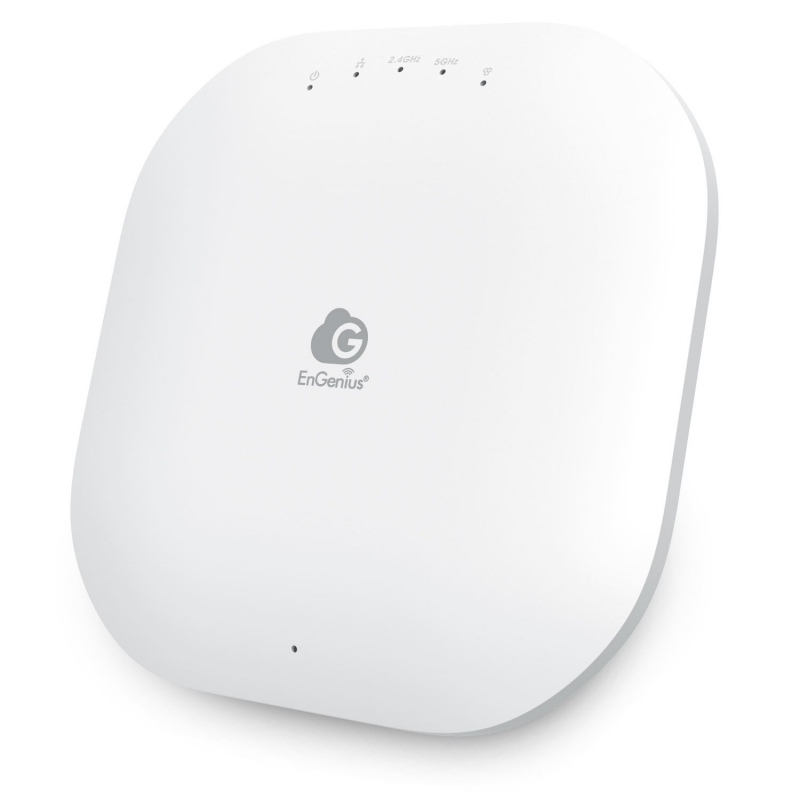

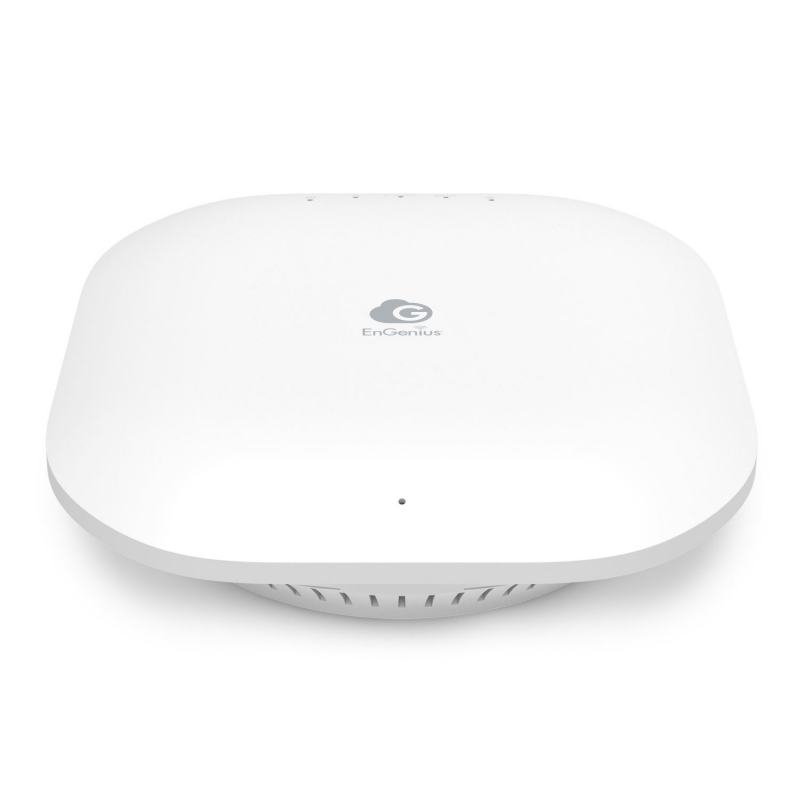

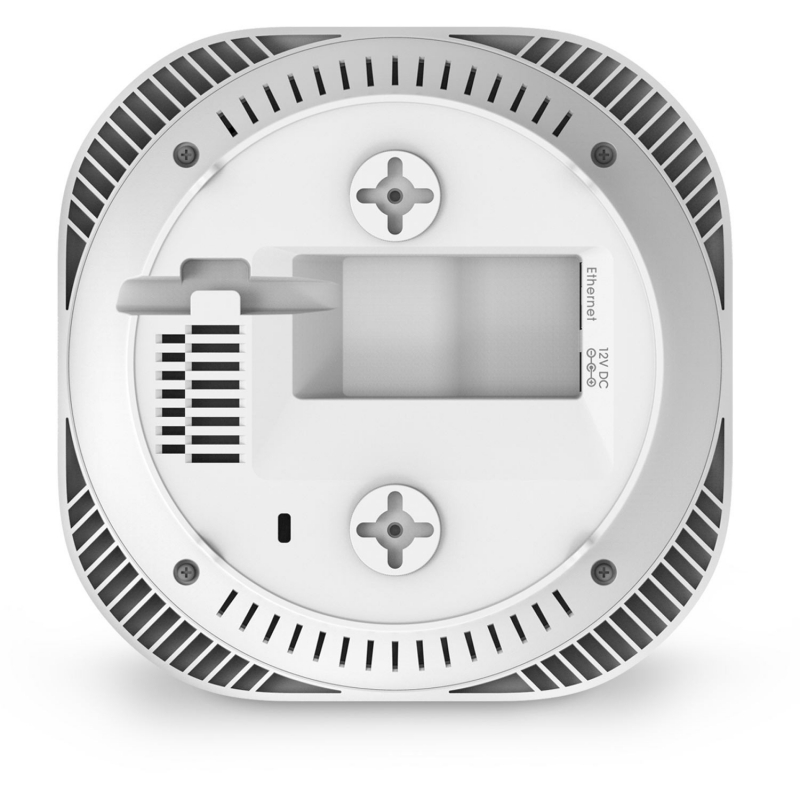

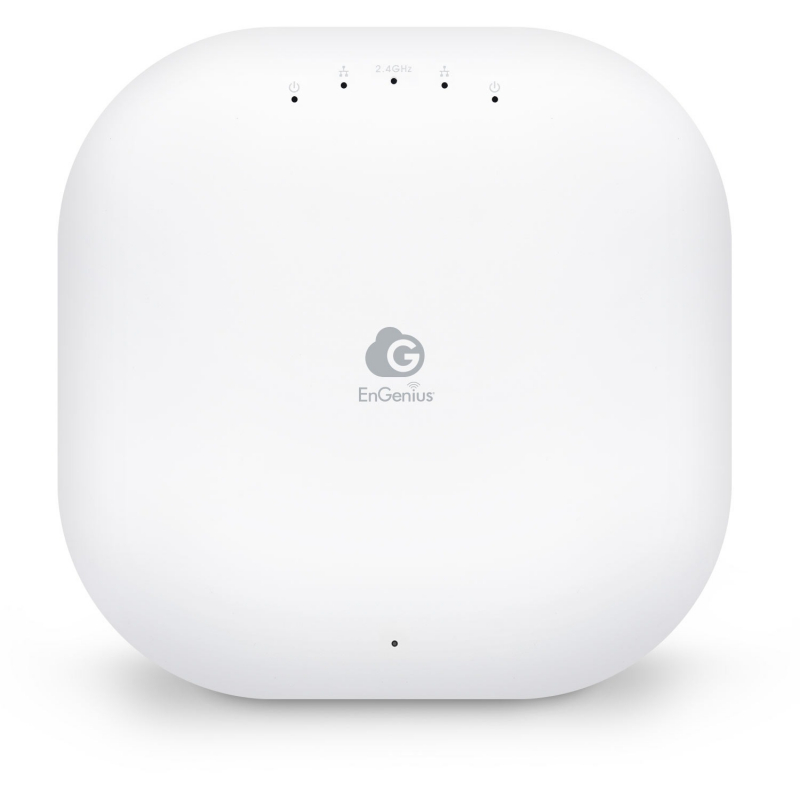

EnGenius Cloud Managed ECW120 Beamforming WiFi 802.11ac Wave 2 Indoor Access Point delivers 1.3 Gbps speeds and higher user capacity. It supercharges performance up to 30% faster than legacy 11ac Wave 1 APs. This dual-band AP with MU-MIMO and Beamforming features meshing, supports PoE, and improves connection reliability for business-class Wi-Fi.

  • Dual-radio 2×2 802.11ac/a/b/g/n with MU-MIMO & Beamforming technology
  • Supports up to 867 Mbps in 5-GHz band & 400 Mbps in 2.4-GHz band
  • Compliance with 802.3af & 48V PoE input for flexible installation up-to 328 feet
  • Quick-Scan Device Register & Configuration and Remote Monitoring & Troubleshooting
  • Cloud Manage unlimited number of AP’s from Anywhere with the EnGenius Cloud App
