Engenius

Engenius – ECW220 | Cloud Managed Wi-Fi 6 2×2 Indoor Wireless Access Point

ق.ر1,399
Quantity
Delivery options
  • 1 Years warranty
  • Cash On Delivery Available
  • Shippment And Pickup

Specifications

  • Antenna : 2 x 2.4 GHz: 3 dBi 2 x 5 GHz: 3 dBi Integrated Omni-Directional Antenna
  • Brand : Engenius
  • Certifications: CE FCC IC
  • Channelization: 802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz 802.11n supports high throughput (HT) —HT 20/40 MHz 802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-
  • Dimensions & Weight: Weight: 382 g Width: 160 mm Length: 160 mm Height: 33.2 mm
  • Environment & Physical Temperature Range: Operating: 32ºF~104ºF (0 ºC~40 ºC) Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)
  • Frequency Radio : 2.4 GHz: 2400 MHz ~ 2472 MHz 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz,5725 MHz ~ 5850 MHz
  • Humidity (non-condensing): Operating: 90% or less Storage: 90% or less
  • LED Indicators : 1 x Power 1 x LAN 1 x 2.4 GHz 1 x 5 GHz
  • Maximum Power Consumption : 12.8W
  • Multiple BSSID : 8 SSIDs on both 2.4GHz and 5GHz radios.
  • Networking Device Type : Access Point
  • Operation Modes: Manage Mode: AP, AP Mesh
  • Package Contents : 1 – ECW220 Cloud Managed Indoor Access Point 1 – Ceiling Mount Base (9/16” Trail) 1 – Ceiling Mount Base (15/16” Trail) 1 – Ceiling and Wall Mount Screw Kit 1 – Quick Installation Guide
  • Physical Interface: 1 x 10/100/1000 Ethernet Port (PoE) 1 x DC Jack 1 x Reset Button
  • Power Source : Power-over-Ethernet: 802.3af/at Input IEEE 802.11e Compliant Source 12VDC /1.5A Power Adapter
  • QoS (Quality of Service) : Compliant With IEEE 802.11e Standard WMM
  • Spanning Tree: Supports 802.1d Spanning Tree Protocol
  • Standards : IEEE 802.11ax on 2.4 GHz IEEE 802.11ax on 5 GHz Backward compatible with 802.11a/b/g/n/ac
  • Supported Data Rates (Mbps): 802.11ax: 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2) 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2) 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1
  • Supported Modulation : 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11b: BPSK, QPSK, CCK
  • Supported Radio Technologies: 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM) 802.11b: Direct-sequence spread-spectrum (DSSS)
  • Transmit Power: Up to 20 dBm on 2.4 GHz Up to 20 dBm on 5 GHz (Maximum power is limited by regulatory domain)
  • VLAN Tagging : Supports 802.1q SSID-to-VLAN Tagging Cross-Band VLAN Pass-Through Management VLAN
  • Wireless & Radio Specifications Operating Frequency : Dual-Radio Concurrent 2.4 GHz & 5 GHz
  • Wireless Security : WPA3 WPA2 Enterprise (AES) WPA2 AES-PSK Hide SSID in Beacons MAC Address Filtering, Up to 32 MACs per SSID Wireless STA (Client) Connected List SSH Tunnel Client Isolation

Product Description

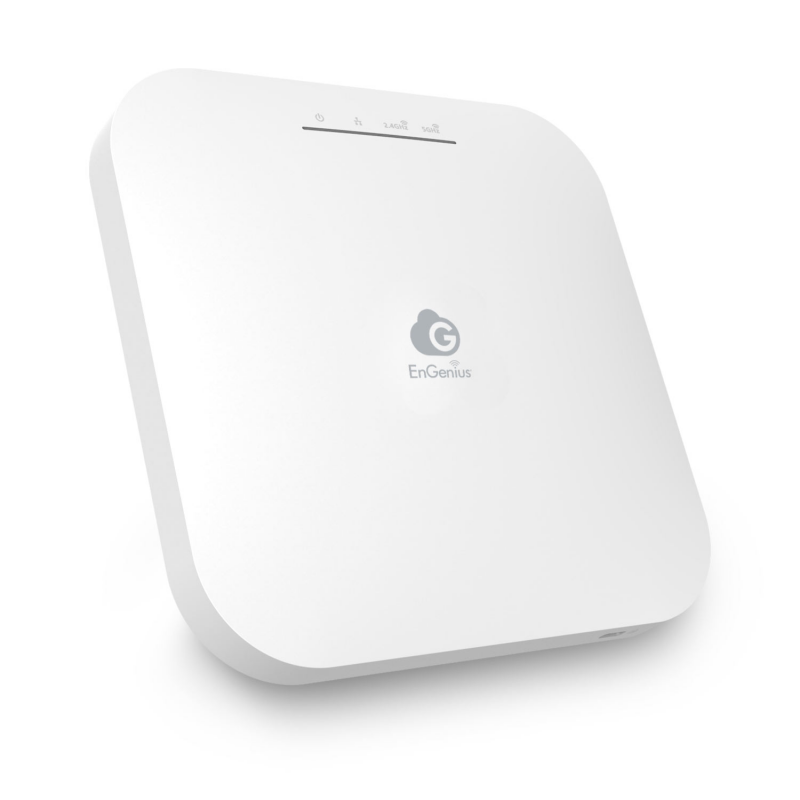

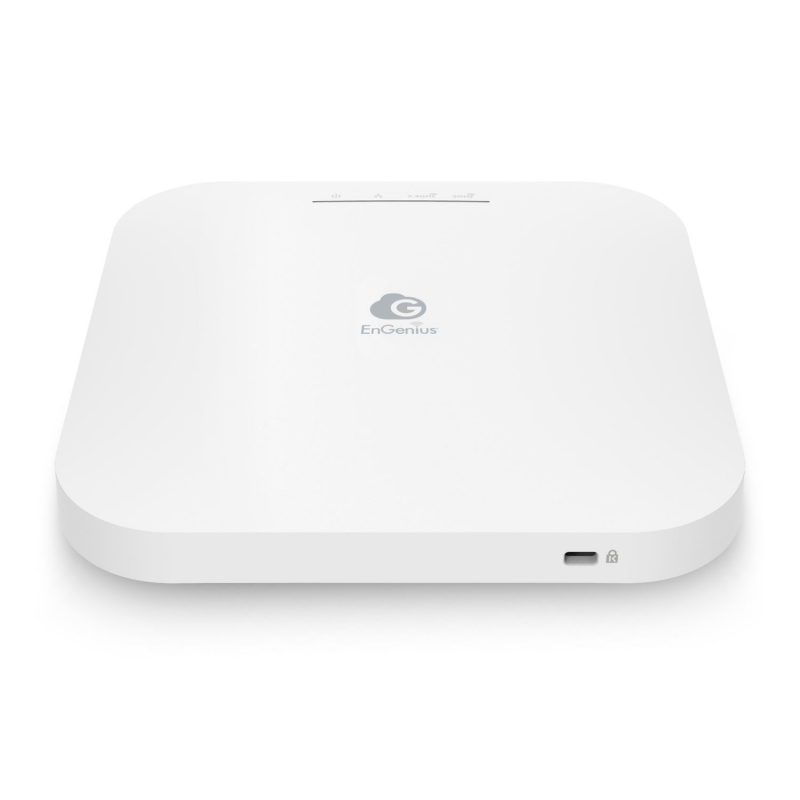

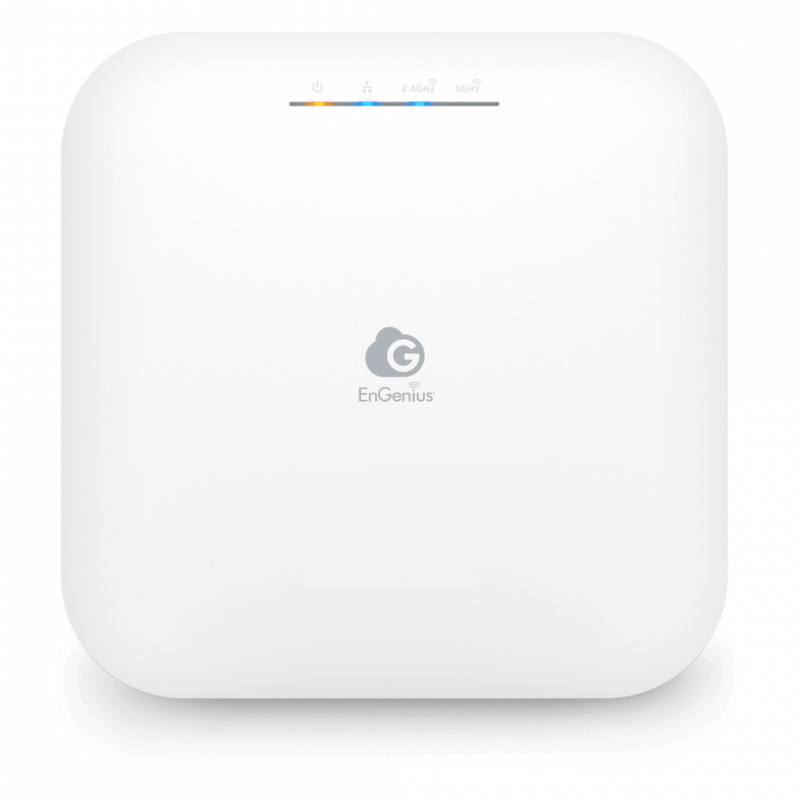

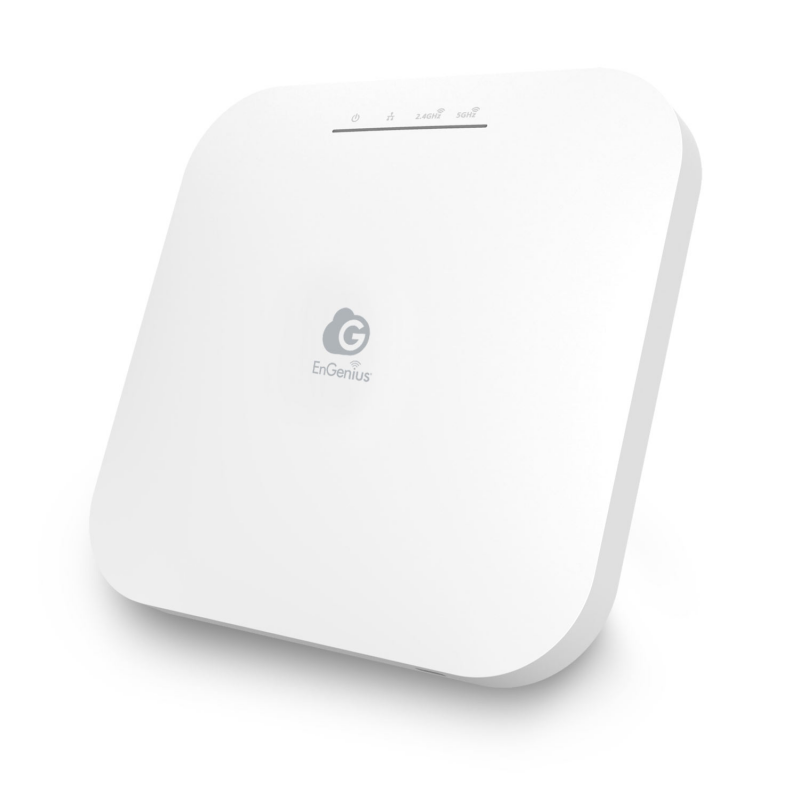

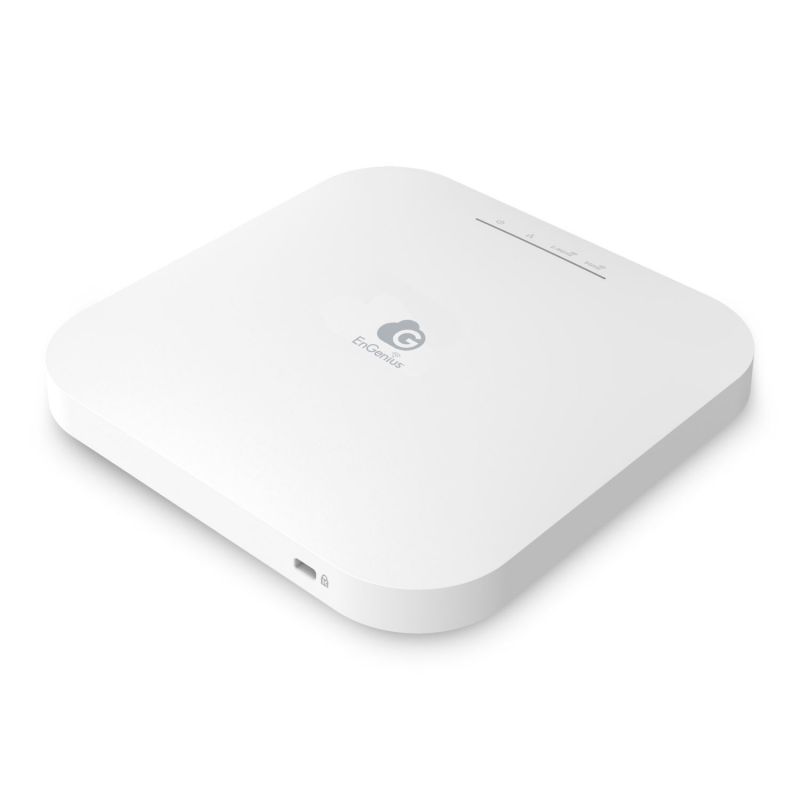

EnGenius Cloud Managed ECW220 Wi-Fi 6 (802.11ax) 2×2 Indoor Wireless Access Point features 802.11ax technology, such as OFDMA, MU-MIMO, and spatial reuse, to expand the capabilities of Wi-Fi. The low-profile AP consumes less power & provides maximum speeds of 574 Mbps (2.4 GHz frequency) and 1,200 Mbps (5 GHz frequency).

  • Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 2×2 antenna
  • Supports up to 1,200 Mbps in the 5-GHz frequency band & 574 Mbps in the 2.4-GHz frequency band
  • Uplink and downlink of OFDMA improves transmission to APs and client devices
  • Target wake time for power-saving of client & IoT devices
  • Uplink & downlink of MU-MIMO for optimal signal & reception reliability for up to 2 devices
