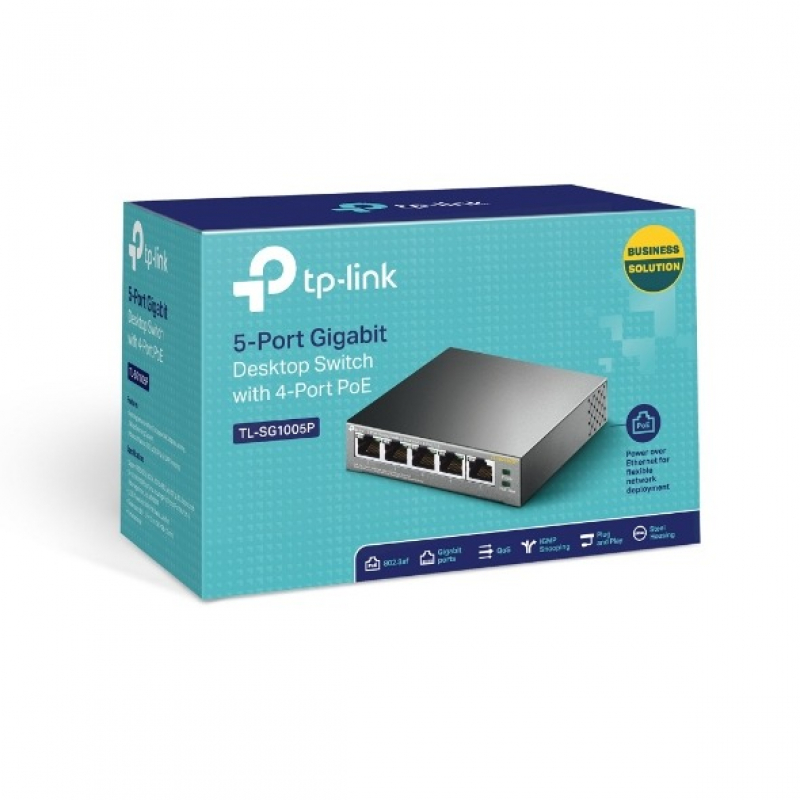

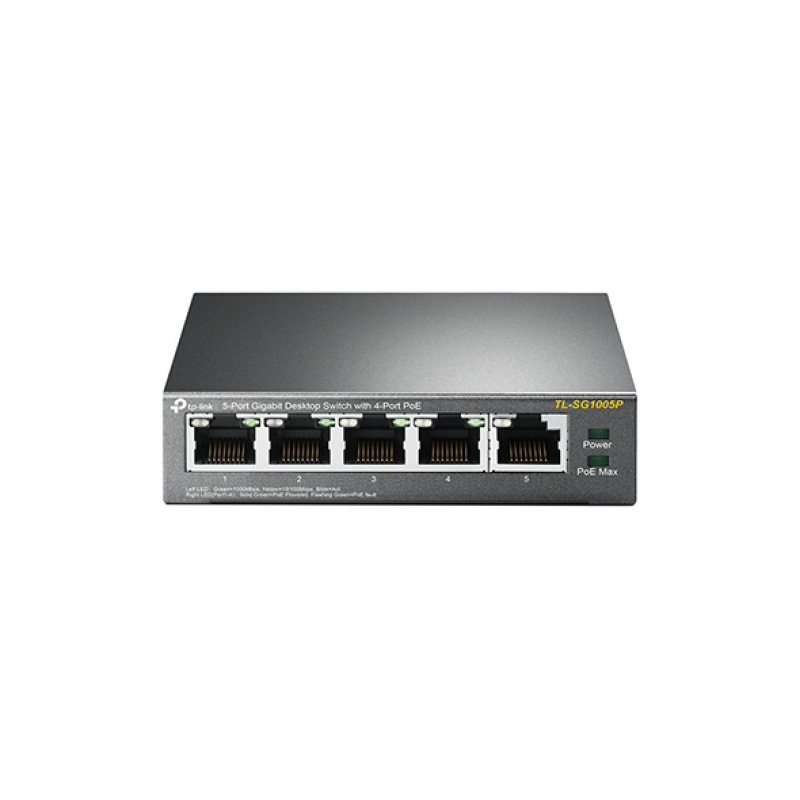

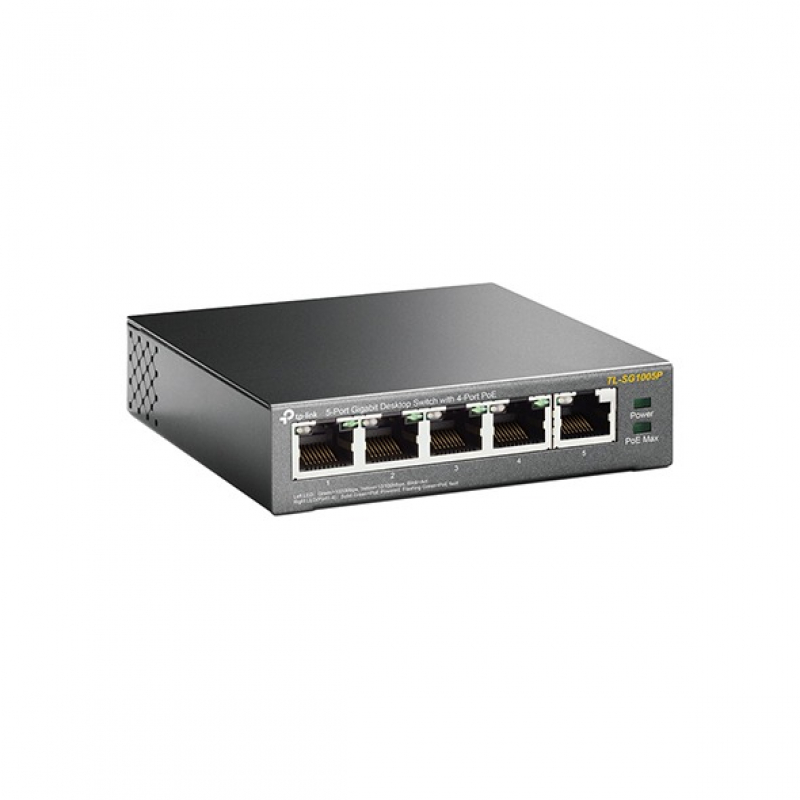

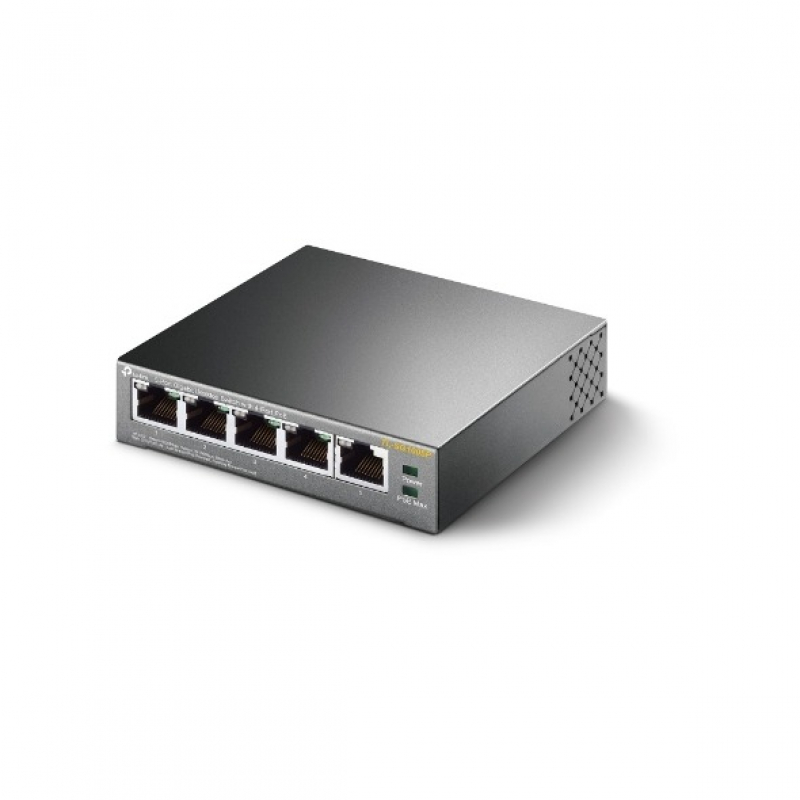

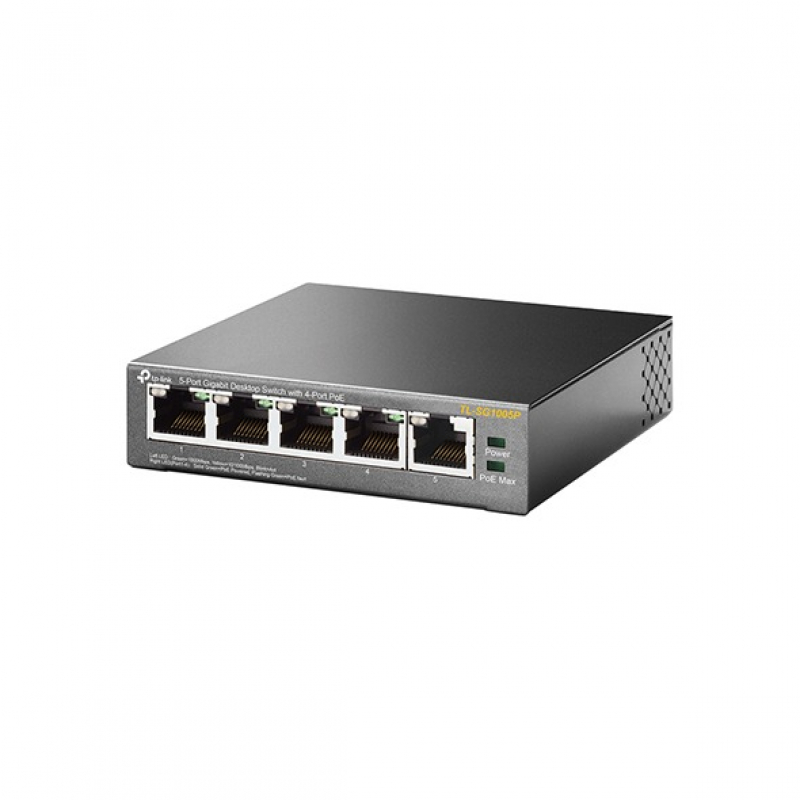

TP-Link TL-SG1005P 5-Port Gigabit PoE Unmanaged Switch
ق.ر399
-
ق.ر399.00Sold by Oxygen Technnology
Specifications
- Brand: TP-Link
- Networking Device Type : Network Switch
HARDWARE FEATURES
- Dimensions ( W x D x H ) : 3.9 × 3.9 × 1.0 in. (100 × 98 × 25 mm)
- External Power Supply : External Power Adapter(Output: 48VDC / 1.25A)
- Backbound Bandwidth : 10Gbps
- Fan Quantity : Fanless
- Mac Address Table : 2K
- Max Heat Dissipation : 13.5BTU/h(no PD load) 219.9BTU/h(with 56W PD load)
- Max Power Consumption : 4.0W(no PD load) 64.4W(with 56W PD load)
- Network Media : 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100
- PoE Ports (RJ45) : Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 56W
OTHERS
- Environment : Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing
- Package Contents : TL-SG1005P, Power Adapter, Installation Guide
SOFTWARE FEATURES
- Transfer Method : Store-And-Forward
HARDWARE FEATURES
- Interface : 5 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
OTHERS
- Certification : FCC, RoHS
SOFTWARE FEATURES
- Advanced Features : Compatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping
Description
Product Description
With no installation or configuration required, the TL-SG1005P 5-Port Gigabit PoE Unmanaged Switch from TP-Link makes it easy to begin connecting additional Ethernet-enabled devices to your network.
This switch comes equipped with five Gigabit Ethernet ports, four of which are 802.3af PoE-compliant. This means you can power a variety of PoE-compliant devices such as access points and IP phones directly from the switch, and with a power budget of up to 56W, there is enough power to go around. Should connected devices exceed that power budget, this switch is capable of shutting power off to network ports starting with port 4. Once installed, connected clients can take advantage of bandwidth up to 10 Gbps and a 2K Mac Address table to ensure optimal network performance.
Power Over Ethernet
Four of the five auto-negotiation RJ-45 ports (port 1 to port 4) of the switch support the Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power to those IEEE 802.3af compliant Powered Devices (PDs).
Overload Arrangement
The TL-SG1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption exceeds 56W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
This function means that port 4 will be cut off when total PoE power consumption exceeds 56W. For an example, if Port 1, 2 and 4 are using 15.4W each, the system power is 46.2W total. If there is an additional 10W PD connected to Port 3, the system will cut off power to Port 4 while Ports 1 and 2 will still use 15.4W and Port 3 will use 10W.
Easy to Use
The TL-SG1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link’s TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
